Behavior and Audit Log Modeling: PostgreSQL Best Practice (2)

postgres=# explain select * from bptest where ts between now()-interval '20 min' and now()-interval '10 min' order by ts;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------------
Merge Append (cost=34.00..634325.20 rows=4808182 width=524)
Sort Key: bptest.ts
-> Index Scan using idx_bptest_ts on bptest (cost=0.14..3.15 rows=1 width=40)
Index Cond: ((ts >= (now() - '00:20:00'::interval)) AND (ts <= (now() - '00:10:00'::interval)))
-> Index Scan using bptest_32_20170522_ts_idx on bptest_32_20170522 (cost=0.30..4802.19 rows=49918 width=524)
Index Cond: ((ts >= (now() - '00:20:00'::interval)) AND (ts <= (now() - '00:10:00'::interval)))
-> Index Scan using bptest_64_20170522_ts_idx on bptest_64_20170522 (cost=0.30..4114.22 rows=42820 width=524)
Index Cond: ((ts >= (now() - '00:20:00'::interval)) AND (ts <= (now() - '00:10:00'::interval)))
-> Index Scan using bptest_34_20170522_ts_idx on bptest_34_20170522 (cost=0.30..3984.00 rows=41459 width=524)
Index Cond: ((ts >= (now() - '00:20:00'::interval)) AND (ts <= (now() - '00:10:00'::interval)))
-> Index Scan using bptest_37_20170522_ts_idx on bptest_37_20170522 (cost=0.30..4898.77 rows=50972 width=524)
Index Cond: ((ts >= (now() - '00:20:00'::interval)) AND (ts <= (now() - '00:10:00'::interval)))
-> Index Scan using bptest_31_20170522_ts_idx on bptest_31_20170522 (cost=0.30..4682.19 rows=48668 width=524)
.....................

Design

Metadata Table Structure

create table db_meta
(
dbid int primary key, -- A record for each database node, representing a database shard
groupid int -- Each shard belongs to a group
conn_info text -- Connection information (URL)
);
create table uid_mapping
(
uid int primary key, -- A user's unique identifier
dbgroupid int -- A database group, representing that data of a specific user is written into all shards in this group
);

Behavior Data Table Structure

create table bptest
(
ts timestamptz, -- Time when a behavior occurs
content text -- Behavior content
);

Behavior Data Index

create index idx_bptest_ts on bptest using brin(ts);  -- Create BRIN indexes in the TS field

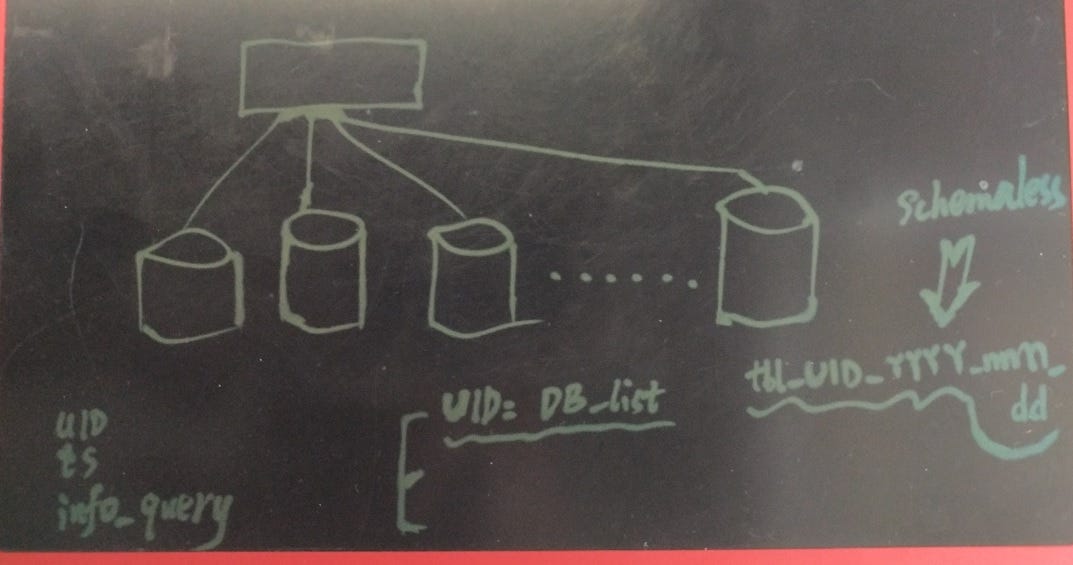

Data Sharding Design

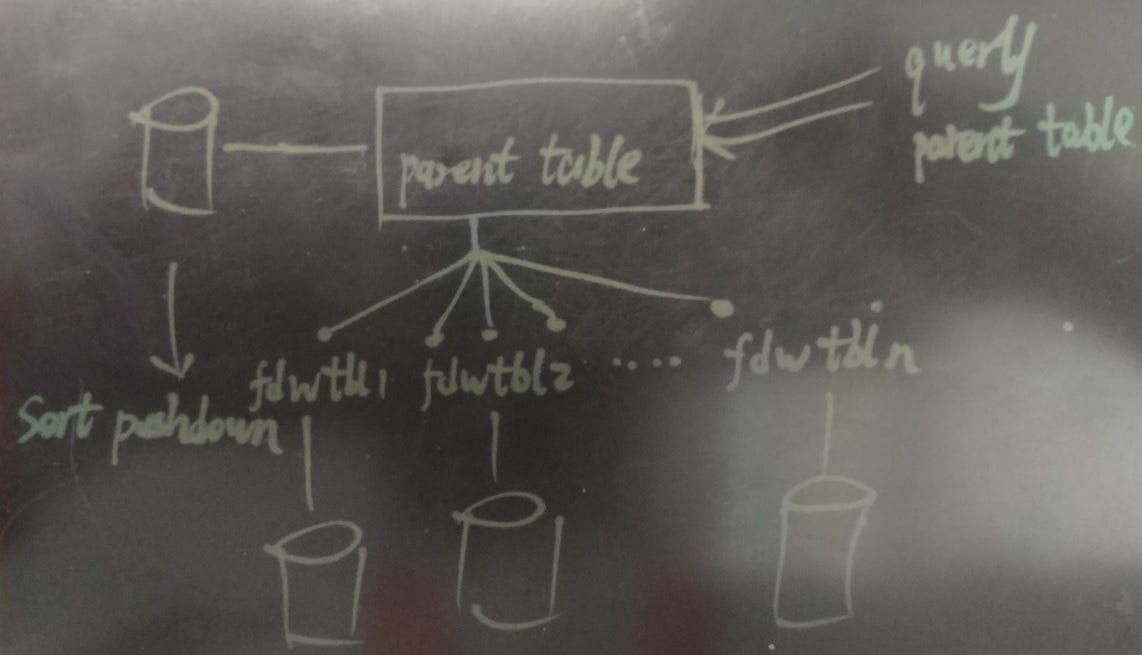

Data Aggregation Design

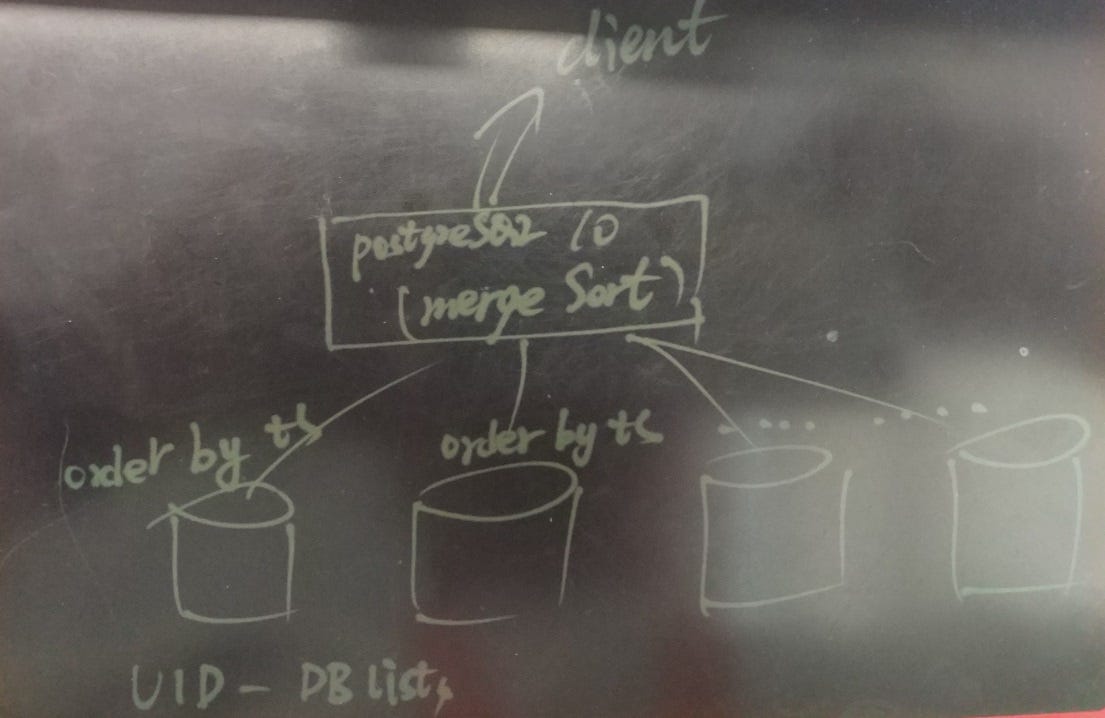

Data Merge Sort Design (Recommended to Implement this Design in the Business Layer in order to Improve Performance)

Schemaless Design of Data Writing (This Design Is Recommended in the Business Layer in Order to Improve Performance)

create or replace function create_schemaless(target name) returns void as
$$

declare
begin
execute format('create table if not exists %I (like bptest including all)', target);
exception when others then
return;
end;
$$
language plpgsql strict;
create or replace function ins_schemaless(uid int, ts timestamptz, content text) returns void as
$$

declare
target name := 'bptest_'||uid||'_'||to_char(ts,'yyyymmdd');
begin
execute format('insert into %I values (%L, %L)', target, ts, content);
exception
WHEN SQLSTATE '42P01' THEN
perform create_schemaless(target);
execute format('insert into %I values (%L, %L)', target, ts, content);
end;
$$
language plpgsql strict;

Design of Processing Historical Data

Analysis Requirement

Performance Test

Environment Preparation

vi env_pg10.sh
export PS1="$USER@`/bin/hostname -s`-> "
export PGPORT=$(($1+1920))
export PGDATA=/disk$1/digoal/pgdata/pg_root$(($1+1920))
export LANG=en_US.utf8
export PGHOME=/home/digoal/pgsql10_8k
export LD_LIBRARY_PATH=$PGHOME/lib:/lib64:/usr/lib64:/usr/local/lib64:/lib:/usr/lib:/usr/local/lib:$LD_LIBRARY_PATH
export LD_RUN_PATH=$LD_LIBRARY_PATH
export DATE=`date +"%Y%m%d%H%M"`
export PATH=$PGHOME/bin:$PATH:.
export MANPATH=$PGHOME/share/man:$MANPATH
export PGHOST=127.0.0.1
export PGUSER=postgres
export PGDATABASE=postgres
alias rm='rm -i'
alias ll='ls -lh'
unalias vi
vi init.sql

-- Clean up the environment
drop table bptest cascade;

-- Initialize the parent table
create table bptest
(
ts timestamptz, -- Time when a behavior occurs
content text -- Behavior content
);

-- Create an index
-- create index idx_bptest_ts on bptest using brin(ts) with(pages_per_range=1); -- BRIN index in the TS field. If output results do not need to be ordered by TS, we recommend that you use a BRIN index
create index idx_bptest_ts on bptest using btree(ts) ; -- If output results do not need to be sorted by TS, we recommend that you use a B-tree index
-- Schemaless design, auto table creation function
create or replace function create_schemaless(target name) returns void as
$$

declare
begin
execute format('create table if not exists %I (like bptest including all) inherits(bptest)', target);
-- Here you can set the column statistic
exception when others then
return;
end;
$$
language plpgsql strict;

-- The function for writing data
create or replace function ins_schemaless(uid int, ts timestamptz, content text) returns void as
$$

declare
target name := 'bptest_'||uid||'_'||to_char(ts,'yyyymmdd');
begin
execute format('insert into %I values (%L, %L)', target, ts, content);
exception
WHEN SQLSTATE '42P01' THEN
perform create_schemaless(target);
execute format('insert into %I values (%L, %L)', target, ts, content);
end;
$$
language plpgsql strict;

-- The function for generating random strings. This function consumes a large number of CPU resources in this example
CREATE OR REPLACE FUNCTION public.gen_rand_str(integer)
RETURNS text
LANGUAGE sql
STRICT
AS $function$
select string_agg(a[(random()*6)::int+1],'') from generate_series(1,$1), (select array['a','b','c','d','e','f',' ']) t(a);
$function$;

-- Pagination evaluation function for evaluating how many records are returned. Avoid using count(*) to evaluate the exact value
CREATE FUNCTION count_estimate(query text) RETURNS INTEGER AS
$func$
DECLARE
rec record;
ROWS INTEGER;
BEGIN
FOR rec IN EXECUTE 'EXPLAIN ' || query LOOP
ROWS := SUBSTRING(rec."QUERY PLAN" FROM ' rows=([[:digit:]]+)');
EXIT WHEN ROWS IS NOT NULL;
END LOOP;
RETURN ROWS;
END
$func$ LANGUAGE plpgsql;
-- Random query performance evaluation function
CREATE or replace FUNCTION rand_query(
v_uid int, -- User ID
v_epoch int, -- Search beginning time
v_randts int, -- Search interval (seconds)
v_randlog text, -- Query criteria
v_cnt int -- Return a specific number of rows
) RETURNS void AS
$func$
DECLARE
tbl name := 'bptest_'||v_uid||'_'||to_char(('1970-01-01'::date+(v_epoch||' sec')::interval),'yyyymmdd');
sql text;
cnt int;
BEGIN
-- agination evaluation
sql := format('select * from %I where ts between %L and %L and content ~ %L order by ts', tbl, '1970-01-01'::date+(v_epoch||' sec')::interval, '1970-01-01'::date+((v_epoch+v_randts)||' sec')::interval, v_randlog);
select count_estimate(sql) into cnt; raise notice 'cnt: %', cnt; -- Use count(*) to return the exact number of pages -- Return a specific number of records
sql := format('select * from %I where ts between %L and %L and content ~ %L order by ts limit %L', tbl, '1970-01-01'::date+(v_epoch||' sec')::interval, '1970-01-01'::date+((v_epoch+v_randts)||' sec')::interval, v_randlog, v_cnt);
execute sql; -- You can transfer the code in the function to the application side and use a cursor to obtain data in order to consistency on each page

-- Use the reverse order to rejoin SQL (order by origin_time desc) if you want to return the last page.
exception when others then
return;
END
$func$ LANGUAGE plpgsql;
psql -f ./init.sql -p 1921
...
psql -f ./init.sql -p 1932

Write Stress Testing 1

vi test.sql


\set uid random(1,100)
select ins_schemaless(:uid, now(), gen_rand_str(512));
vi test.sh


for ((i=1;i<13;i++))
do
. /home/digoal/env_pg10.sh ${i}
nohup pgbench -M prepared -n -r -P 3 -f ./test.sql -c 3 -j 3 -t 100000000 >/tmp/bptest_${i}.log 2>&1 &
done

Test Results

CPU:

Cpu(s): 90.7%us, 7.1%sy, 0.1%ni, 0.4%id, 0.1%wa, 0.0%hi, 1.6%si, 0.0%st

IOUITL:

SSD: 50 %

Bottleneck Analysis

perf top -ag

60953.00 6.0% ExecInterpExpr /home/digoal/pgsql10_8k/bin/postgres
33647.00 3.3% AllocSetAlloc /home/digoal/pgsql10_8k/bin/postgres
27560.00 2.7% advance_aggregates /home/digoal/pgsql10_8k/bin/postgres
22894.00 2.3% base_yyparse /home/digoal/pgsql10_8k/bin/postgres
21976.00 2.2% SearchCatCache /home/digoal/pgsql10_8k/bin/postgres
21768.00 2.2% array_seek /home/digoal/pgsql10_8k/bin/postgres
20957.00 2.1% appendBinaryStringInfo /home/digoal/pgsql10_8k/bin/postgres
19912.00 2.0% memcpy /lib64/libc-2.12.so
17058.00 1.7% array_get_element /home/digoal/pgsql10_8k/bin/postgres
14916.00 1.5% heap_form_minimal_tuple /home/digoal/pgsql10_8k/bin/postgres
13617.00 1.3% heap_fill_tuple /home/digoal/pgsql10_8k/bin/postgres
12201.00 1.2% __rint /lib64/libm-2.12.so
10938.00 1.1% palloc0 /home/digoal/pgsql10_8k/bin/postgres
10683.00 1.1% MemoryContextAllocZeroAligned /home/digoal/pgsql10_8k/bin/postgres
10591.00 1.0% ExecStoreMinimalTuple /home/digoal/pgsql10_8k/bin/postgres
10292.00 1.0% string_agg_transfn /home/digoal/pgsql10_8k/bin/postgres
10202.00 1.0% advance_transition_function /home/digoal/pgsql10_8k/bin/postgres
9973.00 1.0% core_yylex /home/digoal/pgsql10_8k/bin/postgres
PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
40207 root 20 0 0 0 0 R 100.0 0.0 34:47.86 [bch_gc-0b34a79a]
Device:         rrqm/s   wrqm/s     r/s     w/s   rsec/s   wsec/s avgrq-sz avgqu-sz   await  svctm  %util
bcache11 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
bcache10 0.00 6054.00 1.00 105.00 8.00 48640.00 458.94 17.19 157.73 9.43 100.00
bcache9 0.00 2431.00 0.00 100.00 0.00 29408.00 294.08 4.22 102.87 9.86 98.60
bcache8 0.00 4013.00 0.00 85.00 0.00 37352.00 439.44 10.04 174.19 11.76 100.00
bcache7 0.00 1661.00 0.00 58.00 0.00 12952.00 223.31 2.34 53.47 17.02 98.70
bcache6 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
bcache5 0.00 48.00 0.00 71.00 0.00 44896.00 632.34 183.24 2124.06 14.08 100.00
bcache4 0.00 6506.00 0.00 211.00 0.00 56312.00 266.88 74.89 488.20 4.74 100.00
bcache3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
bcache2 0.00 5502.00 0.00 103.00 0.00 44168.00 428.82 144.85 709.10 9.71 100.00
bcache1 0.00 12302.00 0.00 34.00 0.00 13464.00 396.00 84.11 877.03 29.41 100.00
bcache0 0.00 15148.00 0.00 260.00 0.00 42504.00 163.48 47.39 155.56 3.85 100.00
2017-05-23 10:49:55.749 CST,,,25095,,59239d76.6207,9,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint starting: time",,,,,,,,"LogCheckpointStart, xlog.c:8369",""
2017-05-23 10:50:25.434 CST,,,25095,,59239d76.6207,10,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint complete: wrote 233036 buffers (5.6%); 0 WAL file(s) added, 0 removed, 131 recycled; write=29.250 s, sync=0.018 s, total=29.685 s; sync files=300, longest=0.004 s, average=0.000 s; distance=2145650 kB, estimate=2145650 kB",,,,,,,,"LogCheckpointEnd, xlog.c:8451",""
2017-05-23 10:54:55.529 CST,,,25095,,59239d76.6207,11,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint starting: time",,,,,,,,"LogCheckpointStart, xlog.c:8369",""
2017-05-23 10:57:59.222 CST,,,25095,,59239d76.6207,12,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint complete: wrote 191434 buffers (4.6%); 0 WAL file(s) added, 0 removed, 131 recycled; write=118.012 s, sync=59.816 s, total=183.693 s; sync files=300, longest=16.126 s, average=0.199 s; distance=1752021 kB, estimate=2106288 kB",,,,,,,,"LogCheckpointEnd, xlog.c:8451",""
2017-05-23 10:59:55.328 CST,,,25095,,59239d76.6207,13,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint starting: time",,,,,,,,"LogCheckpointStart, xlog.c:8369",""
2017-05-23 11:00:25.350 CST,,,25095,,59239d76.6207,14,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint complete: wrote 176278 buffers (4.2%); 0 WAL file(s) added, 0 removed, 107 recycled; write=29.688 s, sync=0.009 s, total=30.021 s; sync files=300, longest=0.003 s, average=0.000 s; distance=1630757 kB, estimate=2058734 kB",,,,,,,,"LogCheckpointEnd, xlog.c:8451",""
2017-05-23 11:04:55.467 CST,,,25095,,59239d76.6207,15,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint starting: time",,,,,,,,"LogCheckpointStart, xlog.c:8369",""
2017-05-23 11:05:25.381 CST,,,25095,,59239d76.6207,16,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint complete: wrote 232981 buffers (5.6%); 0 WAL file(s) added, 0 removed, 99 recycled; write=29.555 s, sync=0.013 s, total=29.914 s; sync files=300, longest=0.006 s, average=0.000 s; distance=2142180 kB, estimate=2142180 kB",,,,,,,,"LogCheckpointEnd, xlog.c:8451",""
2017-05-23 11:06:44.503 CST,,,36368,"127.0.0.1:44645",5923a744.8e10,1,"",2017-05-23 11:06:44 CST,,0,LOG,00000,"connection received: host=127.0.0.1 port=44645",,,,,,,,"BackendInitialize, postmaster.c:4178",""
2017-05-23 11:06:44.504 CST,"postgres","postgres",36368,"127.0.0.1:44645",5923a744.8e10,2,"authentication",2017-05-23 11:06:44 CST,13/223,0,LOG,00000,"connection authorized: user=postgres database=postgres",,,,,,,,"PerformAuthentication, postinit.c:272",""
2017-05-23 11:09:55.512 CST,,,25095,,59239d76.6207,17,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint starting: time",,,,,,,,"LogCheckpointStart, xlog.c:8369",""
2017-05-23 11:09:56.221 CST,"postgres","postgres",36368,"127.0.0.1:44645",5923a744.8e10,3,"idle",2017-05-23 11:06:44 CST,,0,LOG,00000,"disconnection: session time: 0:03:11.717 user=postgres database=postgres host=127.0.0.1 port=44645",,,,,,,,"log_disconnections, postgres.c:4500","psql"
2017-05-23 11:10:25.512 CST,,,25095,,59239d76.6207,18,,2017-05-23 10:24:54 CST,,0,LOG,00000,"checkpoint complete: wrote 232090 buffers (5.5%); 0 WAL file(s) added, 0 removed, 131 recycled; write=29.489 s, sync=0.141 s, total=29.999 s; sync files=300, longest=0.033 s, average=0.000 s; distance=2136269 kB, estimate=2141589 kB",,,,,,,,"LogCheckpointEnd, xlog.c:8451",""

Write Stress Testing 2

postgres=# select length(concat_ws('',random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random()));
length
--------
512
(1 row)
vi test.sql


\set uid random(1,100)
select ins_schemaless(:uid, now(), concat_ws('',random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random(),random()));
vi test.sh


for ((i=1;i<13;i++))
do
. /home/digoal/env_pg10.sh ${i}
nohup pgbench -M prepared -n -r -P 3 -f ./test.sql -c 10 -j 10 -t 100000000 >/tmp/bptest_${i}.log 2>&1 &
done

Test Results

CPU:

Cpu(s): 76.7%us, 14.6%sy, 0.1%ni, 2.3%id, 2.1%wa, 0.0%hi, 4.1%si, 0.0%st

IOUITL:

SSD: 67 %

Query Stress Testing

postgres=# select count(*) from bptest_1_20170522;
count
----------
21106948
(1 row)
Time: 1776.889 ms (00:01.777)
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from bptest_1_20170522 where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08' order by ts;
QUERY PLAN
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Index Scan using bptest_1_20170522_ts_idx on public.bptest_1_20170522 (cost=0.44..2373942.95 rows=4631011 width=524) (actual time=0.015..2326.653 rows=4622534 loops=1)
Output: ts, content
Index Cond: ((bptest_1_20170522.ts >= '2017-05-22 19:04:19.05347+08'::timestamp with time zone) AND (bptest_1_20170522.ts <= '2017-05-22 20:04:19.05347+08'::timestamp with time zone))
Buffers: shared hit=4639344
Planning time: 0.207 ms
Execution time: 2578.147 ms
(6 rows)
Time: 2578.789 ms (00:02.579)
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from bptest_1_20170522
where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
and content ~ 'abc' and content ~ 'bcd'
order by ts;
QUERY PLAN
--------------------------------------------------------------------------------------------------------------------------
Gather Merge (cost=1890834.11..1933136.32 rows=2870936 width=524) (actual time=6601.842..8136.187 rows=2941196 loops=1)
Output: ts, content
Workers Planned: 4
Workers Launched: 4
Buffers: shared hit=84046, temp read=102440 written=102588
-> Sort (cost=1890834.06..1892628.39 rows=717734 width=524) (actual time=6584.684..6804.063 rows=588239 loops=5)
Output: ts, content
Sort Key: bptest_1_20170522.ts
Sort Method: external merge Disk: 313080kB
Buffers: shared hit=347169, temp read=501609 written=502338
Worker 0: actual time=6582.649..6803.139 rows=588224 loops=1
Buffers: shared hit=66037, temp read=100242 written=100388
Worker 1: actual time=6590.768..6813.019 rows=587934 loops=1
Buffers: shared hit=66168, temp read=100191 written=100337
Worker 2: actual time=6579.297..6799.509 rows=587915 loops=1
Buffers: shared hit=66014, temp read=100172 written=100318
Worker 3: actual time=6569.191..6785.155 rows=578030 loops=1
Buffers: shared hit=64904, temp read=98564 written=98707
-> Parallel Bitmap Heap Scan on public.bptest_1_20170522 (cost=72481.78..1603389.84 rows=717734 width=524) (actual time=338.604..5182.340 rows=588239 loops=5)
Output: ts, content
Recheck Cond: ((bptest_1_20170522.ts >= '2017-05-22 19:04:19.05347+08'::timestamp with time zone) AND (bptest_1_20170522.ts <= '2017-05-22 20:04:19.05347+08'::timestamp with time zone))
Rows Removed by Index Recheck: 19
Filter: ((bptest_1_20170522.content ~ 'abc'::text) AND (bptest_1_20170522.content ~ 'bcd'::text))
Rows Removed by Filter: 336268
Heap Blocks: exact=7063 lossy=60173
Buffers: shared hit=347141
Worker 0: actual time=336.885..5215.415 rows=588224 loops=1
Buffers: shared hit=66030
Worker 1: actual time=337.105..5239.414 rows=587934 loops=1
Buffers: shared hit=66161
Worker 2: actual time=337.128..5213.433 rows=587915 loops=1
Buffers: shared hit=66007
Worker 3: actual time=337.078..5129.862 rows=578030 loops=1
Buffers: shared hit=64897
-> Bitmap Index Scan on bptest_1_20170522_ts_idx (cost=0.00..71764.05 rows=4631011 width=0) (actual time=336.215..336.215 rows=4622534 loops=1)
Index Cond: ((bptest_1_20170522.ts >= '2017-05-22 19:04:19.05347+08'::timestamp with time zone) AND (bptest_1_20170522.ts <= '2017-05-22 20:04:19.05347+08'::timestamp with time zone))
Buffers: shared hit=16810
Planning time: 1.996 ms
Execution time: 8560.577 ms
(39 rows)
Time: 8563.154 ms (00:08.563)
postgres=# \timing
Timing is on.

-- Number of evaluation records
postgres=# select count_estimate(
$$
select * from bptest_1_20170522 where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
$$
);
count_estimate
----------------
4631011
(1 row)
Time: 0.733 ms

-- Actual number of records
postgres=# select count(*) from bptest_1_20170522 where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08';
count
---------
4622534
(1 row)
Time: 1389.424 ms (00:01.389)

-- Number of evaluation records
postgres=# select count_estimate(
$$
select * from bptest_1_20170522
where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
and content ~ 'abc' and content ~ 'bcd' and content ~ 'cdef'
$$
);
count_estimate
----------------
914755
(1 row)
Time: 3.713 ms

-- Actual number of records
postgres=# select count(*) from bptest_1_20170522
where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
and content ~ 'abc' and content ~ 'bcd' and content ~ 'cdef';
count
--------
962780
(1 row)
Time: 7756.863 ms (00:07.757)
postgres=# begin;
BEGIN
Time: 0.170 ms
postgres=# declare cur cursor for select * from bptest_1_20170522
postgres-# where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
postgres-# and content ~ 'abc' and content ~ 'bcd'
postgres-# order by ts;
DECLARE CURSOR

postgres=# fetch 10 from cur;
.........................
(10 rows)
Time: 0.562 ms
On the next page, fetch continues to obtain returns.
postgres=# begin;
BEGIN
Time: 0.114 ms
postgres=# declare cur SCROLL cursor for select * from bptest_1_20170522
where ts between '2017-05-22 19:04:19.05347+08' and '2017-05-22 20:04:19.05347+08'
and content ~ 'abc' and content ~ 'bcd'
order by ts;
DECLARE CURSOR
Time: 2.362 ms

Fetch backward
postgres=# fetch BACKWARD 10 from cur;
Fetch forward
postgres=# fetch FORWARD 10 from cur;

Query Stress Testing

vi sel.sql\set uid random(1,100)
\set epoch uses extract (epoch from min (actual data time))
\set tsinterval random(1800,86400)
\set cnt random(1000,10000)
select rand_query(:uid, :epoch, :tsinterval, substring(text(random()),3,6), :cnt);
vi sel.sh
for ((i=1;i<13;i++))
do
. /home/digoal/env_pg10.sh ${i}
nohup pgbench -M prepared -n -r -P 3 -f ./sel.sql -c 2 -j 2 -t 1000 >/tmp/bptest_sel_${i}.log 2>&1 &
done
Cpu(s): 84.3%us,  7.8%sy,  0.2%ni,  5.5%id,  0.7%wa,  0.0%hi,  1.4%si,  0.0%stSSD UTIL: 67%
Mechanical disk UTIL: 8%
Write QPS: 100,000/sQuery QPS: 1.5/s

Extended Solutions — PG + ES

Drag Data by Line Numbers and Build the ES Full-Text Index

– Drag 10,000 pieces at a timecreate or replace function gen_tids(blkid int) returns tid[] as
$$

declare
res tid[] := '{}'::tid[];
begin
for x in blkid..(blkid+199) loop
select array_cat(res, array(
SELECT ('('||x||',' || s.i || ')')::tid
FROM generate_series(0, 50) AS s(i)
)
) into res;
end loop;
return res;
end;
$$
language plpgsql strict immutable;
Request to drag 10,000 pieces at a time#!/bin/bashfor ((i=1;i<13;i++))
do
. /home/dege.zzz/env_pg10.sh ${i}
for ((i=1;i<=1000000;i=i+200))
do
echo "start: `date` $((50*$i-50))"
psql -c "explain (analyze,verbose,timing,costs,buffers) select * from rds_logs_1_20170607 where ctid = any (gen_tids($i));" >/dev/null
echo "end: `date` "
done
done

Summary

Performance Metrics

Random Distribution versus Availability and Data Skew

db1: host1:port1,host2:port2,host3:port3,host4:port4

db2: host2,port2,host3:port3,host4:port4,host1:port1

db3: host3:port3,host4:port4,host1:port1,host2,port2

db4: host4:port4,host1:port1,host2:port2,host3:port3

--

--

--

Follow me to keep abreast with the latest technology news, industry insights, and developer trends. Alibaba Cloud website:https://www.alibabacloud.com

Love podcasts or audiobooks? Learn on the go with our new app.

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
Alibaba Cloud

Alibaba Cloud

Follow me to keep abreast with the latest technology news, industry insights, and developer trends. Alibaba Cloud website:https://www.alibabacloud.com

More from Medium

Service Registry and Discovery pattern

Maria DB on K8 pros and crons

Let’s have a look at the PostgreSQL CRUD operation

PostgreSQL

Command Design Pattern in Golang
