Developing Apps on Alibaba Cloud IoT Platform with Raspberry Pi and Node.js

npm install rpio2 –production
const Gpio = require('/home/pi/node_modules/rpio2/lib/index.js'). Gpio;

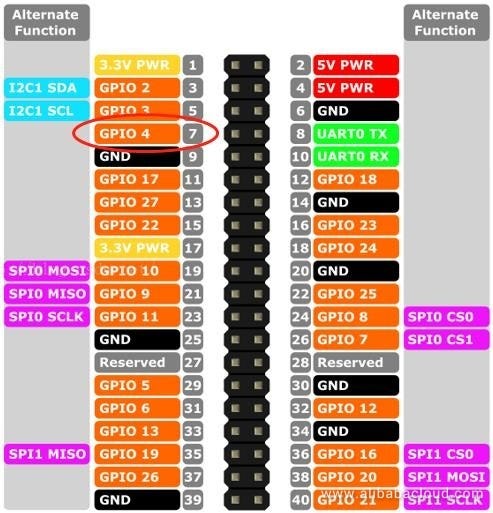

var led = new Gpio(7); //Create Pin7 pin
led.open(Gpio.OUTPUT, Gpio.LOW); //Set to OUTPUT, which defaults to low level
for(var i = 0; i < 20; i++){
led.toggle(); //Switch the level status of the LED
led.sleep(300); //Wait for 500 ms
}
led.close();

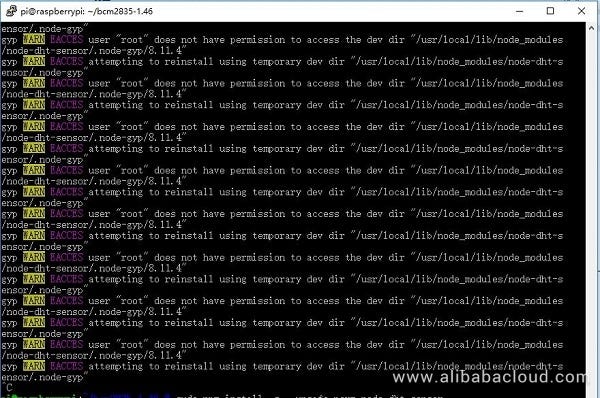

  1. First, run: sudo chmod -R 777 /var/root

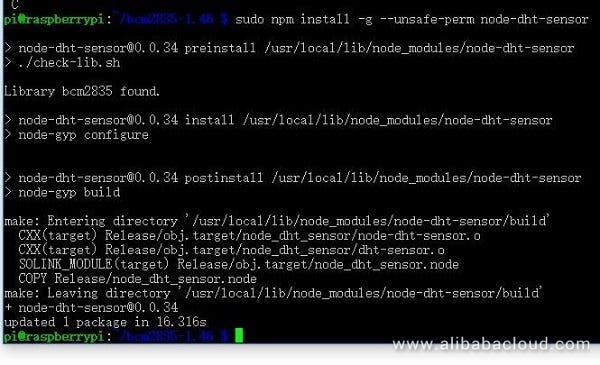

  2. Then, run: sudo npm install -g --unsafe-perm node-dht-sensor. This installs it correctly, as shown in the following figure:
var sensorLib = require('node-dht-sensor');
// Setup sensor, exit if failed
var sensorType = 11; // 11 for DHT11, 22 for DHT22 and AM2302
var sensorPin = 16; // The GPIO pin number for sensor signal
if (! sensorLib.initialize(sensorType, sensorPin)) {
console.warn('Failed to initialize sensor');
process.exit(1);
}
// Automatically update sensor value every 2 seconds
setInterval(function() {
var readout = sensorLib.read();

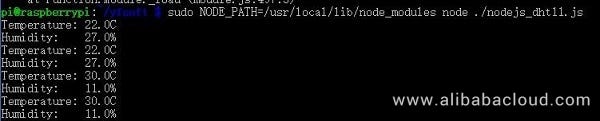

console.log('Temperature:', readout.temperature.toFixed(1) + 'C');
console.log('Humidity: ', readout.humidity.toFixed(1) + '%');
}, 2000);
client.on('message', function(topic, message) {
var json = JSON.parse(message.toString());
console.log("LED="+ json.params.LED.toString());
led.write( json.params.LED);
});
function getPostData(){
var readout = sensorLib.read();
const payloadJson = {
id: Date.now(),
params: {
temperature: readout.temperature.toFixed(1),
humidity: readout.humidity.toFixed(1)
},
method: "thing.event.property.post"
}

--

--

--

Follow me to keep abreast with the latest technology news, industry insights, and developer trends. Alibaba Cloud website:https://www.alibabacloud.com
