Integrating Android Things with Alibaba Cloud IoT

Hardware Devices

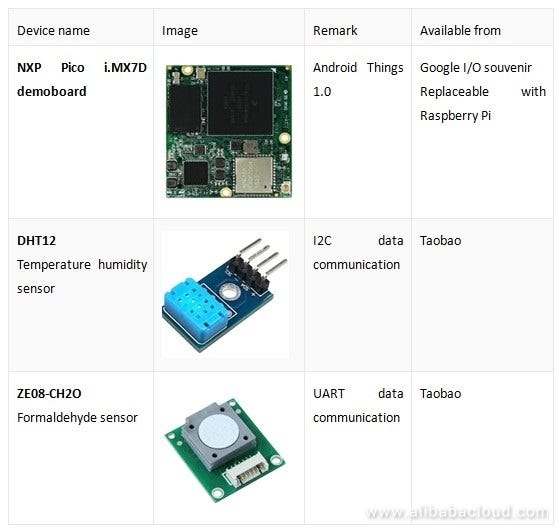

Project Device List

NXP i.MX7D Pins

Device Wiring Diagram

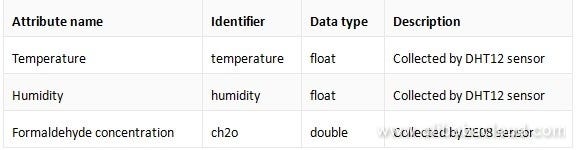

Alibaba Cloud IoT Configuration

Android Things Device Development

  1. Create an Android Things project using Android Studio, and grant network permissions
  • <uses-permission android:name="android.permission.INTERNET" />
  1. Add the “eclipse.paho.mqtt” repository to gradle
  • implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.2.0'
  1. Read DHT12 data through I2C
  • private void readDataFromI2C() { try { byte[] data = new byte[5]; i2cDevice.readRegBuffer(0x00, data, data.length); // check data if ((data[0] + data[1] + data[2] + data[3]) % 256 != data[4]) { humidity = temperature = 0; return; } // humidity data humidity = Double.valueOf(String.valueOf(data[0]) + "." + String.valueOf(data[1])); Log.d(TAG, "humidity: " + humidity); // temperature data if (data[3] < 128) { temperature = Double.valueOf(String.valueOf(data[2]) + "." + String.valueOf(data[3])); } else { temperature = Double.valueOf("-" + String.valueOf(data[2]) + "." + String.valueOf(data[3] - 128)); } Log.d(TAG, "temperature: " + temperature); } catch (IOException e) { Log.e(TAG, "readDataFromI2C error " + e.getMessage(), e); } }
  1. Obtain Ze08CH2O data through UART
  • try { // data buffer byte[] buffer = new byte[9]; while (uartDevice.read(buffer, buffer.length) > 0) { if (checkSum(buffer)) { ppbCh2o = buffer[4] * 256 + buffer[5]; ch2o = ppbCh2o / 66.64 * 0.08; } else { ch2o = ppbCh2o = 0; } Log.d(TAG, "ch2o: " + ch2o); } } catch (IOException e) { Log.e(TAG, "Ze08CH2O read data error " + e.getMessage(), e); }
  1. Create an Alibaba Cloud IoT connection and report the data
  • /* payload format { "id": 123243, "params": { "temperature": 25.6, "humidity": 60.3, "ch2o": 0.048 }, "method": "thing.event.property.post" } */ MqttMessage message = new MqttMessage(payload.getBytes("utf-8")); message.setQos(1); String pubTopic = "/sys/" + productKey + "/" + deviceName + "/thing/event/property/post"; mqttClient.publish(pubTopic, message);

Real-time Data on Cloud Console

Source Code

--

--

--
