Understanding HTTP/2: History, Features, Debugging, and Performance

Image for post
Image for post

Alibaba Cloud has supported HTTP/2 since the CDN 6.0 service launched in 2016, and has seen a 68% improvement to access rates. In this article, we will cover four aspects of HTTP/2: history, features, debugging, and performance.

HTTP (HyperText Transfer Protocol) is the most widely used network protocol on the Internet. The purpose of HTTP is to provide a method for publishing and receiving HTML pages. Resources requested through HTTP or HTTPS are identified by URI (Uniform Resource Identifier).

Although HTTP/1.1 has been running stably for more than 10 years, HTTP/2 is the wave of the future, which all engineers should learn. This article takes a deep dive in the history, features, debugging, and performance of HTTP/2 as shared by Jinjiu, a security technical expert at Alibaba Cloud CDN.

I. History

1. HTTP/0.9

2. HTTP/1.0

In addition to the GET method, the POST and HEAD methods were also introduced, which enriched interactions between browsers and servers. Using this protocol, you can send contents in any format. The result is that the Internet can transfer not only text, but also images, videos, and binary files. This laid the foundation for the rapid development of the Internet.

The formats of HTTP requests and responses also changed. In addition to the data itself, every communication must include an HTTP header that describes relevant metadata.

Even though HTTP/1.0 presented a revolutionary change to HTTP/0.9, it still has some disadvantages. Primarily, each TCP connection can only send one request, and the connection is disabled when data is sent. If you want to request other resources, you have to create a new connection. Although some browsers have addressed this problem with a non-standard connection header, this is does not fully solve the problem. Since it is not a standard header, implementations between different browsers and servers may be different, so this solution is considered sub-optimal.

3. HTTP/1.1

After nearly 20 years of development, this version of the HTTP protocol is now very stable. Compared to HTTP/1.0, it adds various noticeable new features such as Host protocol headers, range segment requests, default sustained connections, compressed and chunked transfer encoding, cache processing, and many more. These features are still widely used and relied upon by most software.

Although HTTP/1.1 is not as revolutionary a change as HTTP/1.0 to HTTP/0.9, it still had a lot of improvements. Current mainstream browsers are still using HTTP/1.1 by default to this day.

4. SPDY

5. HTTP/2

Note that HTTP/2 is not called HTTP/2.0 because IETF (Internet Engineering Task Force) considers HTTPP/2 to be a mature technology that does not require future sub-versions. If significant changes are made necessary in the future, they will be published in HTTP/3.

Actually, SPDY is the predecessor of HTTP/2 as it has very similar goals, principles, and implementations. As there are many Google engineers in the IETF committee, it is not surprising that SPDY became the standard for HTTP/2.

HTTP/2 not only features optimized performance, but is also compatible with the HTTP/1.1 syntax, whose features are similar to SPDY. HTTP/2 is quite different from HTTP/1.1; it is a binary protocol and not a text protocol. It also uses HPACK to compress HTTP headers, and supports multiplexing, server push, etc.

II. Features

1. Binary Protocol

+ — — — — — — — — — — — — — — — — — — — — — — — -+ | Length (24) | + — — — — — — — -+ — — — — — — — -+ — — — — — — — -+ | Type (8) | Flags (8) | +-+ — — — — — — -+ — — — — — — — -+ — — — — — — — — — — — — — — — -+ |R| Stream Identifier (31) | +=+=============================================================+ | Frame Payload (0…) … + — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+

We call it the basic format because all HTTP/2 Frames are packaged according to this basic format, which is similar to the TCP header. There are currently 10 Frames, which are distinguished by field Type, and each Frame has its own binary format packaged in Frame Payload.

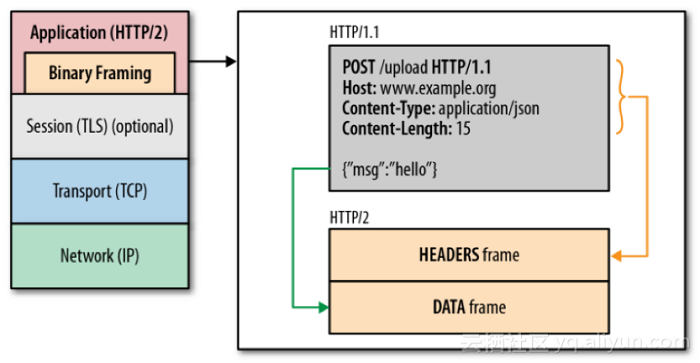

There are two important Frames: the Headers Frame (Type = 0x1) and the Data Frame (Type = 0x0), corresponding to the Header and Body in HTTP/1.1 respectively. Obviously the semantics hasn’t changed significantly, only the text format has changed to binary. The conversion and relationship between Frames are shown in the figure below (from High Performance Browser Networking):

Image for post
Image for post

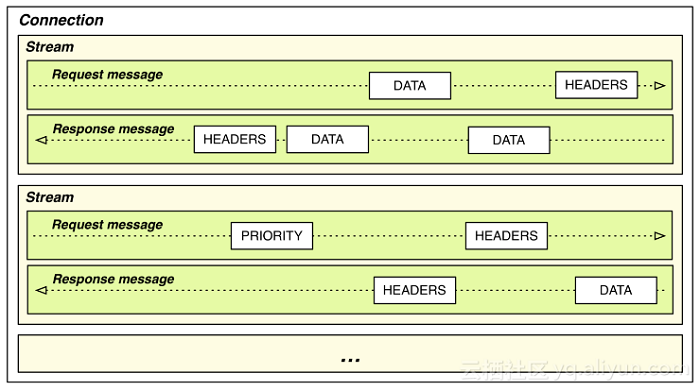

Furthermore, there are concepts like Stream and Message in HTTP/2, which are identified by the field Stream Identifier (Stream ID). Streams with the same Stream ID refer to the same Stream, and Message is included in Stream, corresponding to Request Message or Response Message in HTTP/1.x. Message is transferred through a Frame, while Response Message is larger and may be transferred through multiple Data Frames. The relationship of Stream, Message, and Frame in HTTP/2 is shown in the figure below (from High Performance Browser Networking):

Image for post
Image for post

2. Header Compression

Thus, there is an optimization in HTTP/2 to compress and transfer headers in the HPACK format, and create an index table for the headers. Only the index number has to be sent for the same header, which improves efficiency and transfer rate. The cost is that the client and the server have to maintain an index table, but since memory is not currently as expensive as it used to be, the tradeoff is worthwhile.

For more information on HPACK, see RFC7541.

3. Multiplexing

Image for post
Image for post

4. Server Push

Image for post
Image for post

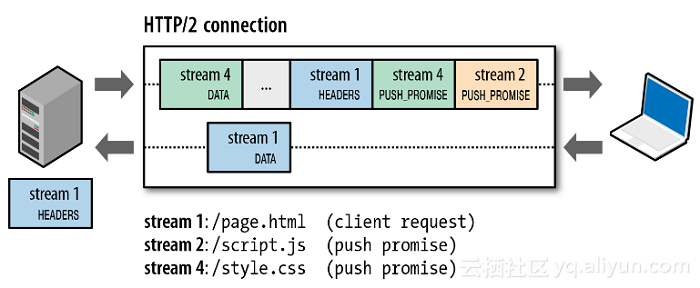

A browser initiates a request for the page page.html, in which script.js and style.css are introduced. The server pushes the files script.js and style.css after the response to page.html, so that script.js and style.css are already available locally when the browser resolves page.html. This means that the browser does not have to send a separate request for these files, saving two rounds of requests and responses and effectively increasing the loading speed of the page.

5. Security

III. Debugging

1. Enabling

# git clone https://github.com/alibaba/tengine.git
# cd tengine
# ./configure --prefix=/opt/tengine --with-http_v2_module
# make
# make install

1.2 Generate test certificate and private key

# cd /etc/pki/CA/
# touch index.txt serial
# echo 01 > serial
# openssl genrsa -out private/cakey.pem 2048
# openssl req -new -x509 -key private/cakey.pem -out cacert.pem
# cd /opt/tengine/conf
# openssl genrsa -out tengine.key 2048
# openssl req -new -key tengine.key -out tengine.csr
...
Country Name (2 letter code) [AU]:CN
State or Province Name (full name) [Some-State]:ZJ
Locality Name (eg, city) []:HZ
Organization Name (eg, company) [Internet Widgits Pty Ltd]:Aliyun
Organizational Unit Name (eg, section) []:CDN
Common Name (e.g. server FQDN or YOUR name) []:www.tengine.com
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
...
# openssl x509 -req -in tengine.csr -CA /etc/pki/CA/cacert.pem -CAkey /etc/pki/CA/private/cakey.pem -CAcreateserial -out tengine.crt

1.3 Configure HTTP/2

server {
listen 443 ssl http2;
server_name www.tengine.com;
default_type text/plain;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_certificate tengine.crt;
ssl_certificate_key tengine.key;
ssl_ciphers EECDH+CHACHA20:EECDH+CHACHA20-draft:EECDH+AES128:EECDH+AES256:EECDH+3DES:RSA+3DESi:RC4-SHA:ALL:!MD5:!aNULL:!EXP:!LOW:!SSLV2:!NULL:!ECDHE-RSA-AES128-GCM-SHA256;
ssl_prefer_server_ciphers on;
location / {
return 200 "http2 is ok";
}
}

1.4 Start tengine:

# /opt/tengine/sbin/nginx -c /opt/tengine/conf/nginx.conf
1.5. Test
First bind to /etc/hosts:
127.0.0.1 www.tengine.com
Test with nghttp tool:
jinjiu@j9mac ~/work/pcap$ nghttp 'https://www.tengine.com/' -v
[ 0.019] Connected
[ 0.043][NPN] server offers:
* h2
* http/1.1
The negotiated protocol: h2
[ 0.064] recv SETTINGS frame <length=18, flags=0x00, stream_id=0>
(niv=3)
[SETTINGS_MAX_CONCURRENT_STREAMS(0x03):128]
[SETTINGS_INITIAL_WINDOW_SIZE(0x04):2147483647]
[SETTINGS_MAX_FRAME_SIZE(0x05):16777215]
[ 0.064] recv WINDOW_UPDATE frame <length=4, flags=0x00, stream_id=0>
(window_size_increment=2147418112)
[ 0.064] send SETTINGS frame <length=12, flags=0x00, stream_id=0>
(niv=2)
[SETTINGS_MAX_CONCURRENT_STREAMS(0x03):100]
[SETTINGS_INITIAL_WINDOW_SIZE(0x04):65535]
[ 0.064] send SETTINGS frame <length=0, flags=0x01, stream_id=0>
; ACK
(niv=0)
[ 0.064] send PRIORITY frame <length=5, flags=0x00, stream_id=3>
(dep_stream_id=0, weight=201, exclusive=0)
[ 0.064] send PRIORITY frame <length=5, flags=0x00, stream_id=5>
(dep_stream_id=0, weight=101, exclusive=0)
[ 0.077] send PRIORITY frame <length=5, flags=0x00, stream_id=7>
(dep_stream_id=0, weight=1, exclusive=0)
[ 0.077] send PRIORITY frame <length=5, flags=0x00, stream_id=9>
(dep_stream_id=7, weight=1, exclusive=0)
[ 0.077] send PRIORITY frame <length=5, flags=0x00, stream_id=11>
(dep_stream_id=3, weight=1, exclusive=0)
[ 0.077] send HEADERS frame <length=39, flags=0x25, stream_id=13>
; END_STREAM | END_HEADERS | PRIORITY
(padlen=0, dep_stream_id=11, weight=16, exclusive=0)
; Open new stream
:method: GET
:path: /
:scheme: https
:authority: www.tengine.com
accept: */*
accept-encoding: gzip, deflate
user-agent: nghttp2/1.9.2
[ 0.087] recv SETTINGS frame <length=0, flags=0x01, stream_id=0>
; ACK
(niv=0)
[ 0.087] recv (stream_id=13) :status: 200
[ 0.087] recv (stream_id=13) server: Tengine/2.2.0
[ 0.087] recv (stream_id=13) date: Mon, 26 Sep 2016 03:00:01 GMT
[ 0.087] recv (stream_id=13) content-type: text/plain
[ 0.087] recv (stream_id=13) content-length: 11
[ 0.087] recv HEADERS frame <length=63, flags=0x04, stream_id=13>
; END_HEADERS
(padlen=0)
; First response header
http2 is ok[ 0.087] recv DATA frame <length=11, flags=0x01, stream_id=13>
; END_STREAM
[ 0.087] send GOAWAY frame <length=8, flags=0x00, stream_id=0>
(last_stream_id=0, error_code=NO_ERROR(0x00), opaque_data(0)=[])

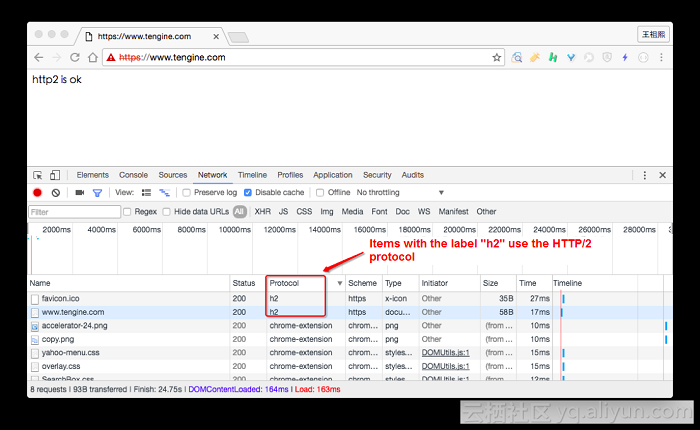

Test with Chrome:

Image for post
Image for post

2. Packet Capture Analysis

2.1. First export the system variable $SSLKEYLOGFILE, taking OS-X as an example

#bashecho "\nexport SSLKEYLOGFILE=~/ssl_debug/ssl_pms.log" >> ~/.bash_profile && . ~/.bash_profile

2.2 Open Chrome or Firefox

#chrome
open /Applications/Google\ Chrome.app/Contents/MacOS/Google\ Chrome
#firefox
open /Applications/Firefox.app/Contents/MacOS/firefox

Open an https website with Chrome or Firefox, for example: https://www.taobao.com
and see if there is content in ~/ssl_debug/ssl_pms.log. If there is, you can use Wireshark to decrypt the https data.

2.3 Wireshark settings

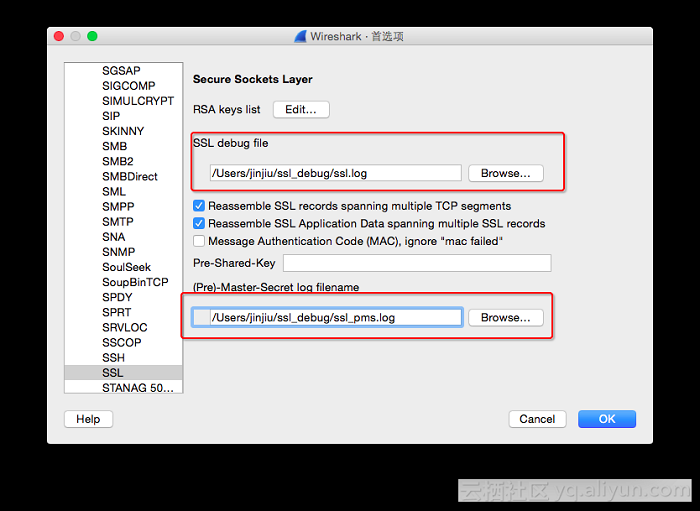

Wireshark->Perferences...->Protocols->SSL

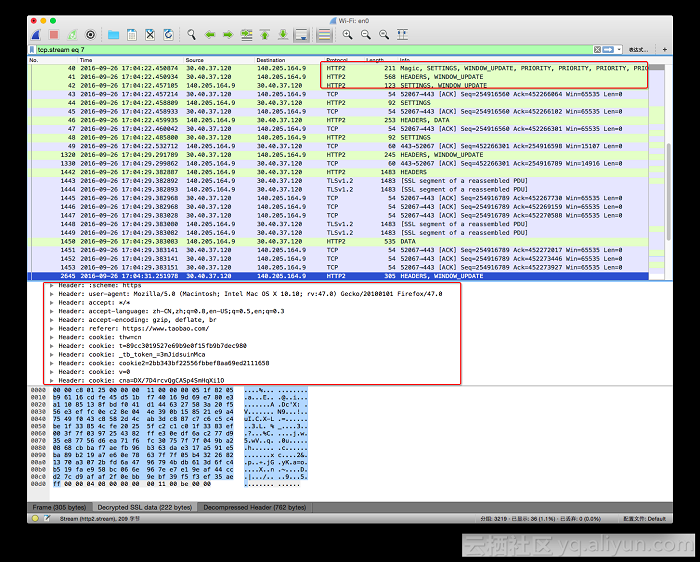

Start packet capture

Image for post
Image for post
Image for post
Image for post

As you can see, we have now obtained the plaintext content of the HTTP/2 packets. As the scope of this article is limited, we won’t go into any further explanation of HTTP/2. For more information please see: RFC7540.

IV. Performance

Image for post
Image for post
Image for post
Image for post

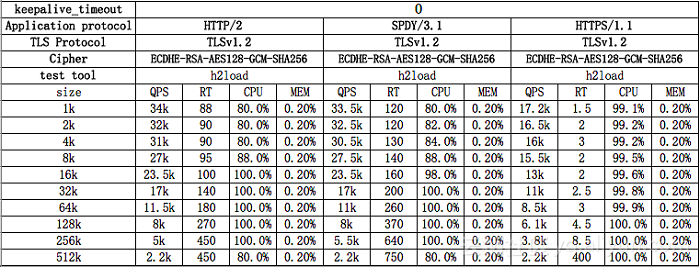

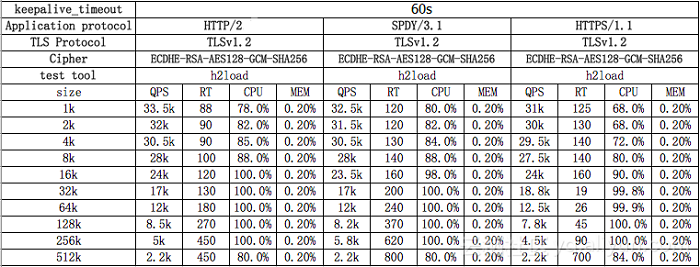

Analysis of Results:

Looking at the CPU performance, it seems the culprit behind consuming more resources is gcm_ghash_clmul. The network card reaches its bottleneck when size is 512k, while the CPU does not. When keepalive is enabled, there is no significant difference between the performances of HTTP/1.1 and HTTP/2, but when disabled, HTTP/2 performs better.

Conclusion:

Reference:
